Evaporation Materials

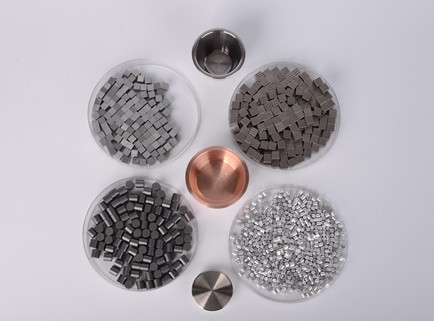

Evaporation Pellets & Pieces

Metal thin films are characterized by high reflectivity, cut-off band width, good neutrality, low polarization effects and other advantages. Therefore, they play an important role in the design of film systems for special applications. Our evaporation materials can be used to obtain the most stringent quality film. We offer complete  high purity metals evaporation materials with various shapes, no matter for R&D or mass production. Our regular evaporation materials are listed in below form, if your desired materials is not included, pls contact our sales engineers for customized service.

Material Purity Melting Point Evaporation Source Specifications Application
Ag 4N 962℃ EB Pellets, Pieces HR coating
Ti 4N,4N5 1668℃ B Pellets, Pieces HR coating
Protected coating
Ni 4N,4N5,5N 1453℃ B Pellets, Pieces HR coating
Protected coating
V 3N 1890℃ EB Pellets, Pieces Cold light coating
Protected coating
Cr 3N5,4N 1890℃ EB Pieces Decoration coating
Al 4N,5N,6N 660℃ B Pellets, Pieces Cold light coating
HR coating
Cu 4N,5N,6N 1083℃ EB Pellets, Pieces Cold light coating
Protected coating
Ta 3N5,4N 2996℃ EB Pellets, Pieces Protected coating

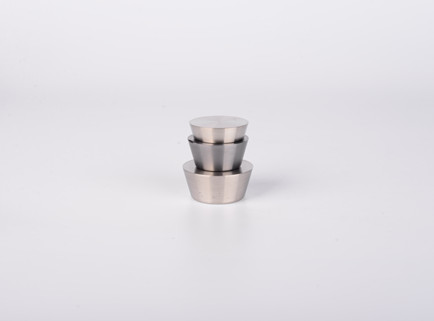

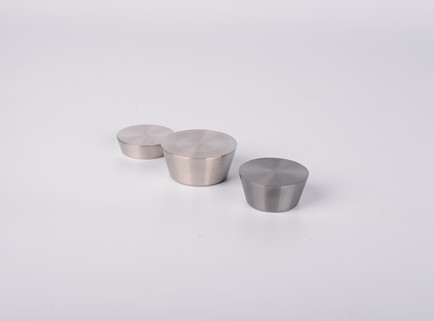

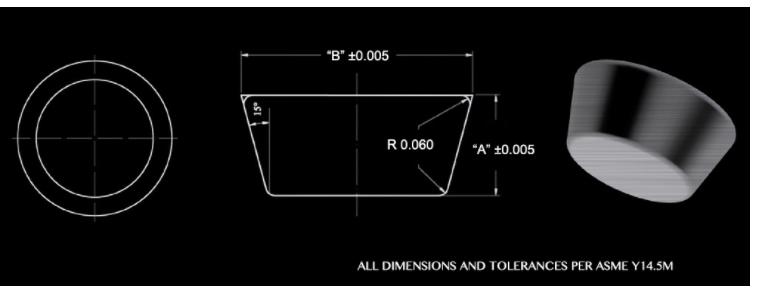

Evaporation Starter Slug & Crucibles

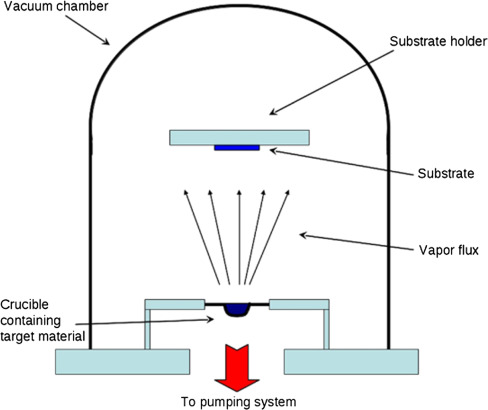

We produce many accessories for deposition equipment, including slug starter and crucible with a variety of metal materials and dimensions, these high-quality material is designed for thermal evaporation and electron beam evaporation. Benefiting from vast stock, we can promise a earliest delivery for regular specifications. Moreover, all of our products are cleaned and vacuum packed before shipment, so that our customers can use it immediately.

Product Name Material Purity Melting Point Regular Size
Starter Slug Ti 4N,4N5 1668℃

4cc - Top Dia 0.885"  x  Height 0.595"

7cc - Top Dia 1.167"  x  Height 0.563"

15cc - Top Dia 1.480"  x  Height 0.670"

25cc - Top Dia 1.850"  x  Height 0.680"

40cc - Top Dia 2.030"  x  Height 1.020"
Starter Slug Al 4N,5N,6N 660℃
Starter Slug Ni 4N,4N5,5N 1453℃
Starter Slug V 3N 1890℃
Starter Slug Cr 3N5,4N 1890℃
Crucibles Cu 4N~6N 1083℃ 4cc - Top Dia 0.885"  x  Height 0.595"

7cc - Top Dia 1.167"  x  Height 0.563"

15cc - Top Dia 1.480"  x  Height 0.670"

25cc - Top Dia 1.850"  x  Height 0.680"

40cc - Top Dia 2.030"  x  Height 1.020"
Crucibles Ta 3N5 2996℃
Crucibles Nb 3N5 2468℃
Crucibles W 3N5 3410℃
Crucibles Mo 3N5 2617℃
